Playwright Annotations

Using Playwright Annotations to enhance reporting to Currents dashboard

Requires @currents/playwright 1.5.0+

Playwright Annotations is a flexible way to add additional information about tests, like:

  • ownership information

  • metadata

  • links to external resources (Jira ticket, GitHub issue)

  • notes

Together with Playwright Tags it allows augmenting your testing suite with metadata for easier managing, better reporting and improved integrations.

You can add an annotation to a test by:

  • adding annotations object to test definition or

  • calling testInfo.annotations.push

For example:

test("annotated test", {
    annotation: {
      type: "issue",
      description: "https://github.com/microsoft/playwright/issues/23180",
    },
}, async ({ page }, testInfo) => {
  testInfo.annotations.push({
    type: "note",
    description: "This is a note",
  });

  testInfo.annotations.push({
    type: "jira",
    description: "https://jira.company.io/ticket/JIRA-123",
  });

  testInfo.annotations.push({
    type: "owner",
    description: "johnsmith",
  });
});

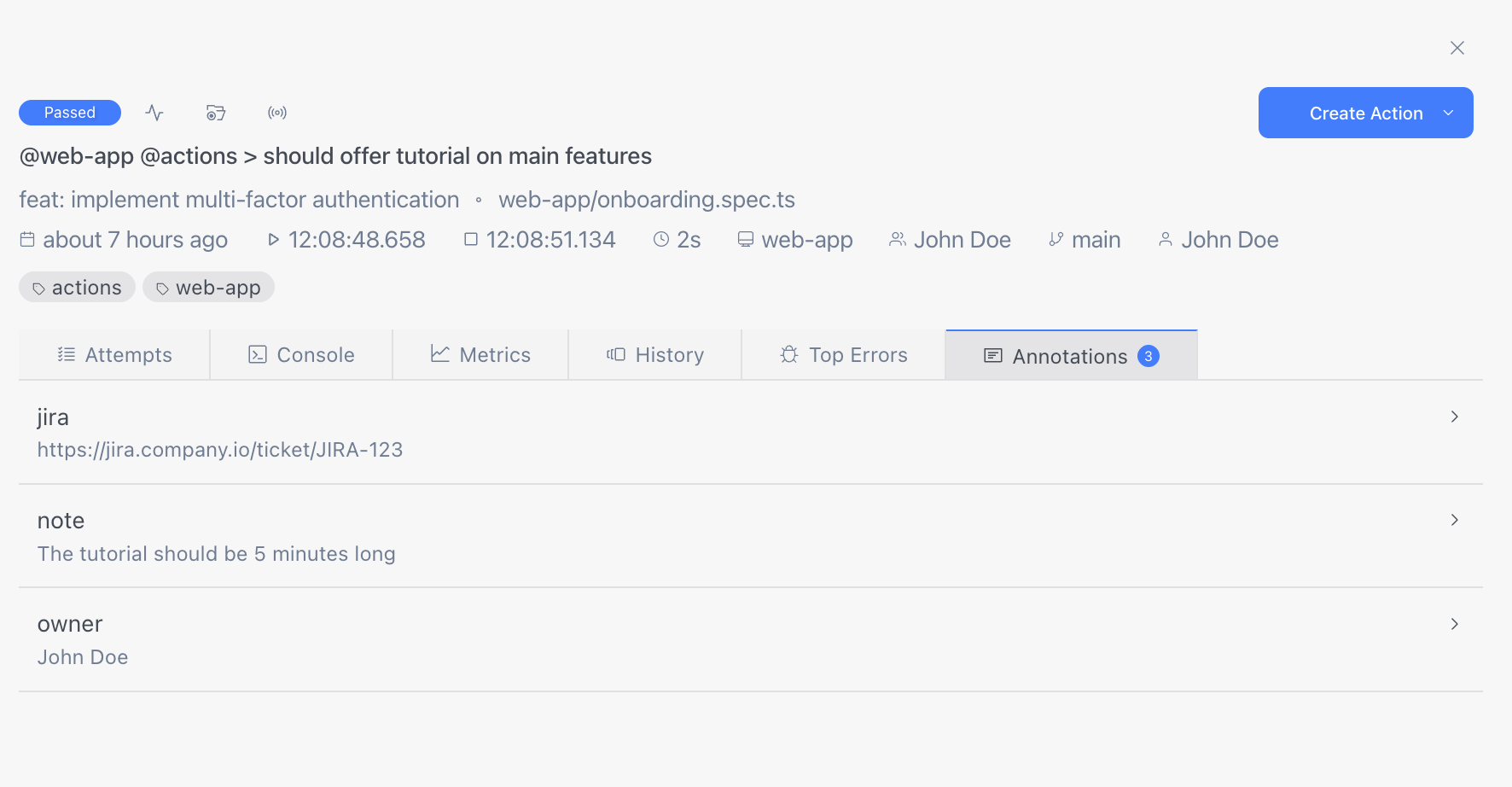

Currents shows the annotations for the test:

Playwright annotations in Currents

Limitations

Currents applies the following rules when parsing annotations:

  • types: skip, fixme, fail, slow are reserved by Playwright

  • 32 max distinct annotations per test, extra annotations will be removed (sorted by the order of appearance)

  • type field is limited to 256 characters, the values are trimmed and truncated to the max length

  • description field is limited to 2048 characters, the values are trimmed and truncated to the max length

  • If type is empty after trimming, the annotation is ignored

Source and Deduplication

Annotations can originate from test case definition or at runtime from test execution attempt.

  • Currents deduplicates annotations with exactly the same type, description and source.

  • Currents removes attempt-level annotation if there's an equivalent test-case annotation

Annotation: Test Owner

While Currents displays all the annotations related to a test, some annotation have a special meaning, for example - test owner.

To designate an owner of a test, add annotation with type: owner, for example:

testInfo.annotations.push({
  type: "owner",
  description: "johnsmith",
});

The value will appear in various areas of the dashboard so that your team can quickly identify the who owns the test.

Showing test owner using annotations in Currents

Annotation: Slack Notifications

Annotation of type notify:slack activates Slack mentions for failed tests - when Currents detects a failed test with notify:slack annotation, it will trigger Slack notification according to the following convention:

  • type: "notify:slack", description: "user:userId" - will notify user with the corresponding userId, userId can be either a Slack UserId or Slack Username

  • type: "notify:slack", description: "team:teamId" - will notify team with the corresponding teamId, (see how to retrieve Slack Team id)

You can combine the values to activate multiple notifications, for example:

{
  "type": "notify:slack",
  "description": "user:U01RWNBFGER, team:S07JCUP81EG"
}

For example, the following annotations will define test owner and activate slack notifications:

test(
    "my failed test",
    {
      annotation: [
        {
          type: "owner", // This shows the user in the dashboard
          description: "Miguel Langarano",
        },
        {
          type: "notify:slack", // This notifies the user in Slack
          description: "user:U01RWNBFGER",
        },
        {
          type: "notify:slack", // This notifies a group in Slack
          description: "team:T01S60385HA",
        },
      ],
    },
    async ({ page }) => {
      expect(true).toBe(false);
    }
);
Test owner shown in Currents dashboard
Slack notification to specific user and group in Slack

Annotation: Custom Metrics

Custom metric is an experimental feature. We are gathering feedback to refine and improve it.

Recording Custom Metrics

Annotation of type currents:metric allows tracking arbitrary metrics associated with your tests, for example:

  • page performance

  • accessibility score

  • memory consumption

  • network response timing

Use annotation type of currents:metric and a serialized JSON object in description to define a metric. For example:

{
  type: "currents:metric",
  description: JSON.stringify({
    "name": "memory_usage",
    "value": 540.3,
    "type": "float",
    "unit": "mb"
  }),
}

The JSON string must contain name and value. And optionally can contain type and unit .

Parameter
Type
Description

name*

string

The name of the metric you want to track.

value*

number

The current value of the metric you want to track.

type

enum

The value type. Values: float, integer. Default: float

unit

enum

The unit to show in the dashboard. Values: none, ms, s, %, b , kb , mb , gb Default: none

For example, the following test captures page load time as a custom metric metrics:

test("performance test example", async ({ page }) => {
  await page.goto(`https://example.com`);
  const [performanceTiming] = await page.evaluate(() => {
    const [timing] = performance.getEntriesByType(
      "navigation"
    ) as PerformanceNavigationTiming[];
    return [timing];
  });
  // Get the start to load event end time
  const startToLoadEventEnd =
    performanceTiming.loadEventEnd - performanceTiming.startTime;

  // Add the custom metric to the annotations
  test
    .info()
    .annotations.push({
      type: "currents:metric",
      description: JSON.stringify({
        name: "page-performance",
        value: startToLoadEventEnd,
        type: "float",
        unit: "ms",
      }),
    });
});

Browsing Custom Metrics

The custom metrics are avaialble in Test Results chart. Use "Custom Metric" control to browse the available metrics and aggregation functions.

Custom metric selection
